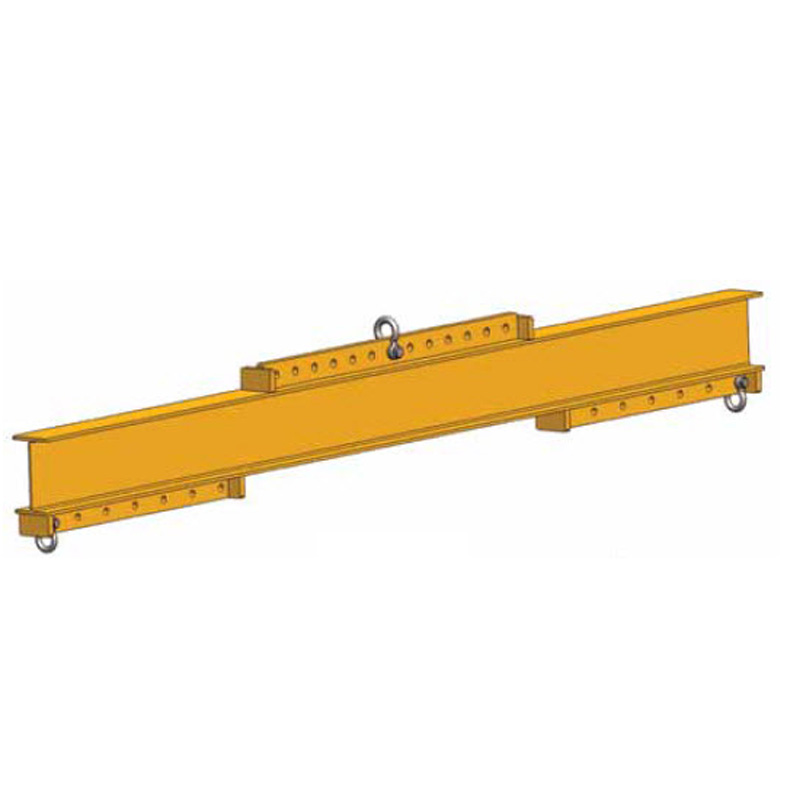

1/2 Ton 4 feet Peerless Universal Lifting Beam

1/2 Ton x 4 feet Peerless Universal Lifting Beam

Capacity: 1/2 Ton
Max. Spread: 4 feet
Min. Spread : 1 feet

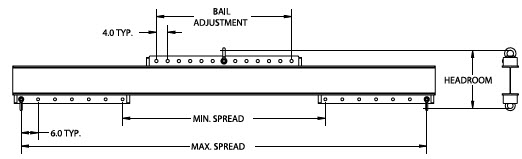

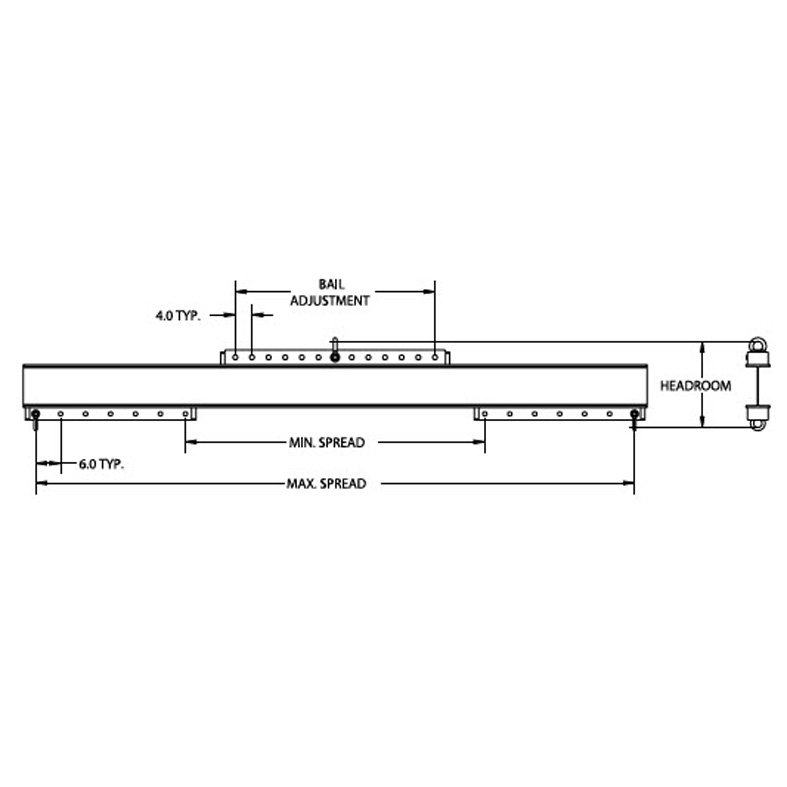

Bail Adjustment: 16 inches
Headroom: 8 inches
Top Shackle: 1.5 Tons
Bottom Shackle: 1.5 Tons
Weight : 45 lbs.

FEATURES

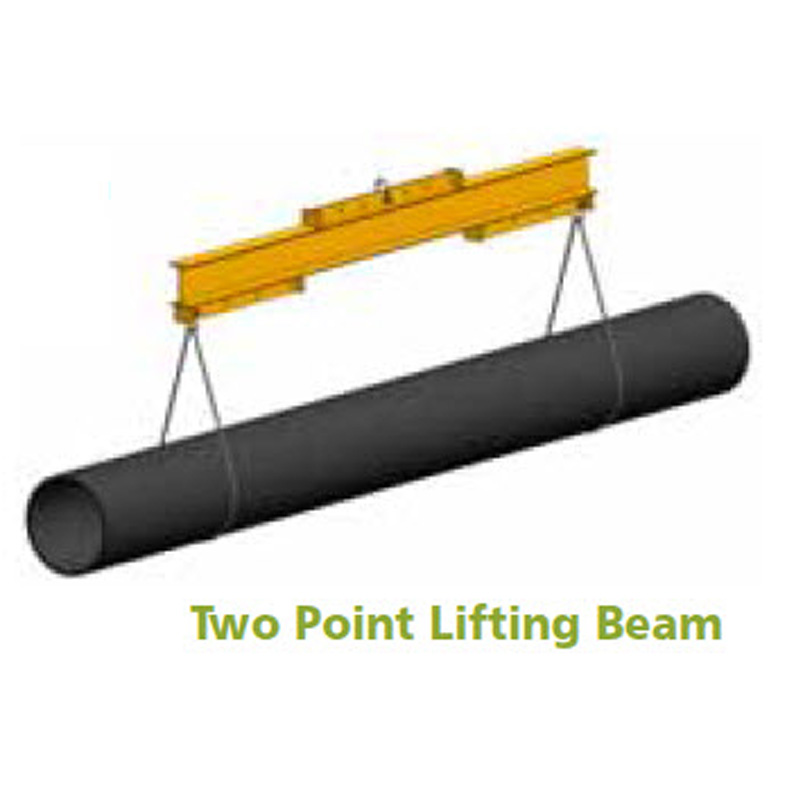

•This style of universal beam can be utilized as a lifting beam where headroom is limited or a spreader beam where extra stability is required.
•As a lifting beam, the upper lift point can be easily adjusted to lift an off center load.

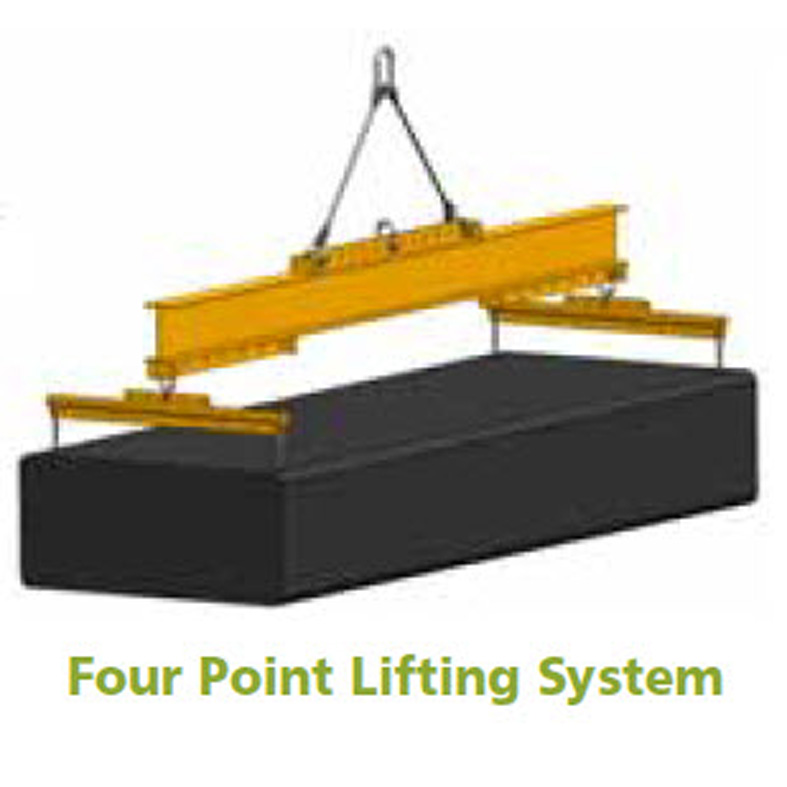

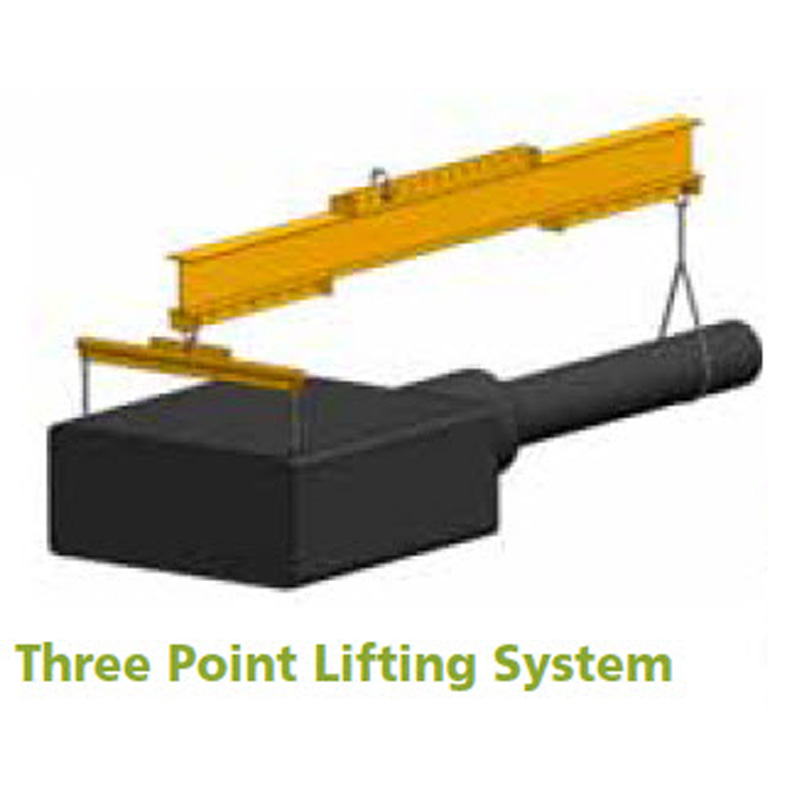

•Can be configured as an optional three or four point lifting system.
•Can be supplied with optional chain top rigging.
•Supplied with one upper shackle for adjustable bail positions and two lower shackles for adjustable spreads.
•Engineered and manufactured to ASME B30.20 & BTH-1 Design Category B Service Class 2.
•100% of ALL Peerless Lifting Beams are Proof-Tested to 125% capacity and certificates supplied
